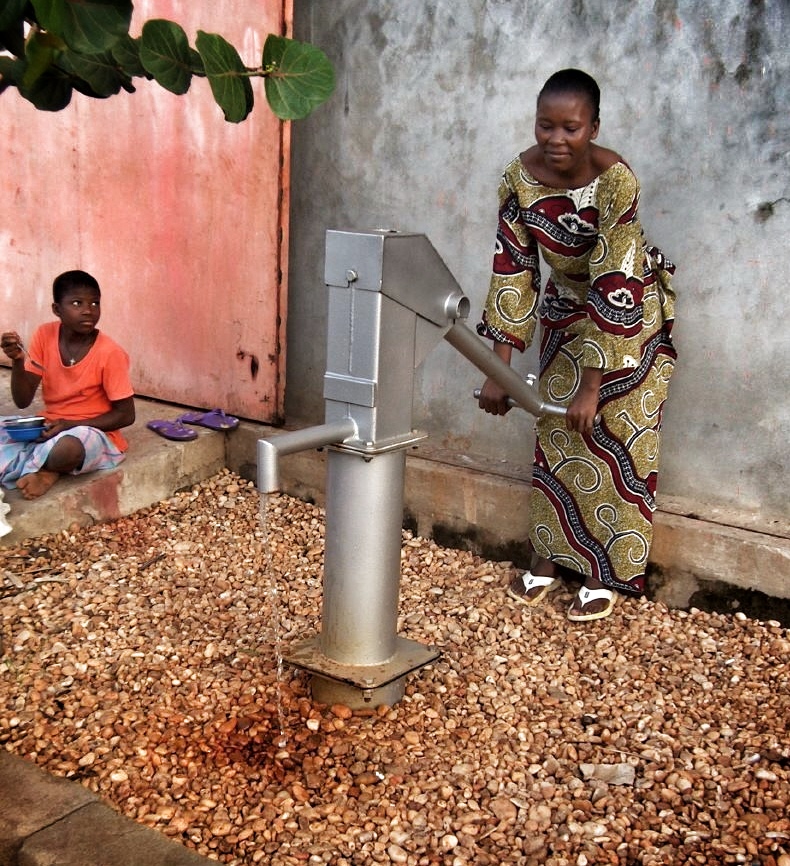

The Afridev Pump is a conventional lever action handpump. It is designed for heavy-duty use, serving communities of up to 300 persons. The maximum recommended lift is 45 m. The Afridev Pump is a public domain pump defined by RWSN specifications. The Afridev Pump is fully corrosion resistant, easy to install and has excellent potential for community-based maintenance.
The Afridev Pump is a conventional lever action handpump. The configuration includes an “open top” cylinder: the piston can be removed from the cylinder without dismantling the rising main. The foot valve is retractable with a fishing tool.
Pump head, handle and pump stand are made of galvanised steel, pump rods
of stainless steel or of FRP rods (fibre glass reinforced plastic), rising main of PVC-U pipe (Ø 63 mm), cylinder of PVC-U pipe with brass liner (Ø 50 mm), plunger and foot valve are of brass or plastic. This pump is fully corrosion resistant.
All steel parts of this pump have a potential for local manufacturing. Local companies who manufacture PVC-U pipes and have the knowledge of processing engineering plastics are able to produce the “down-hole components”. Tooling cost are high and therefore the number of manufacturer will be limited.
|Depths to be used:||10-45 m|
|Cylinder dia.:||50.0 mm,|
|Maximum Stroke:||225 mm,|
|Approx. discharge (75 watt input):||at 10 m head: 1.4 m³/hour,|
|at 15 m head: 1.1 m³/hour,|
|at 20 m head: 0.9 m³/hour,|
|at 30 m head: 0.7 m³/hour,|
|Pumping lift:||10 - 45 m,|
|Population served:||~ 300 people,|
|Households:||30 - 50 hh,|
|Water cons.:||15 - 20 lt/per capita,|
|Type of well:||borehole or dug well.|
The installation of the Afridev Pump is not difficult and does not need any lifting equipment. It is however recommended to employ a well-trained crew with the necessary skills for the installation.
This pump has an excellent “Community Management Potential”, it is reliable, easy to repair by a village caretaker and popular with the communities.
In Pakistan and Afghanistan derivatives of the Afridev Pump with the names Indus, Kabul and Pamir Pump have been developed.
Price (approx): Pump at 0 m: USD ……
SS Pumprods (with M12): USD ……
PVC-U Rising main (per 3 m): USD ……
Distribution: throughout Africa, many ten thousands.
PVC-U Polyvinyl Chloride (unplasticised)
MS Mild Steel
SS Stainless Steel
FRP Fibre Reinforced Plastic
RWSN, Handpump Specification, CD, Edition 2009
RWSN AFRIDEV Handpump, Specification, Revision 5-2007,
AFRIDEV Handpump, Installation and Maintenance Manual, Revision 2-2007
RWSN AFRIDEV Manuel d’installation et d’entretien (français) Edition 1995
RWSN AFRIDEV Handpump Maintenance Card
RWSN AFRIDEV Handpump, Carte de Maintenance, (français)
RWSN AFRIDEV Handpump, Injection Moulding Manual, Revision 1-1999
RWSN AFRIDEV Handpump, Quality Control Guidelines, Revision 2-2008
RWSN AFRIDEV Handpump, Mould Drawings for Rubber Components, Edition 2003
RWSN AFRIDEV Handpump, Packaging Guidelines, Edition 1992
RWSN AFRIDEV Handpump with Bottom Support System, Revision 1-2008
RWSN, Afridev Installation Card (English and French Edition 2009)
Maintenance interventions for the Afridev Handpump
Possible composition of a selected Afridev Handpump:
Pump head type B
Pump stand type C
Rising main arrangement A
Cylinder arrangement A
Pump rod arrangement C
